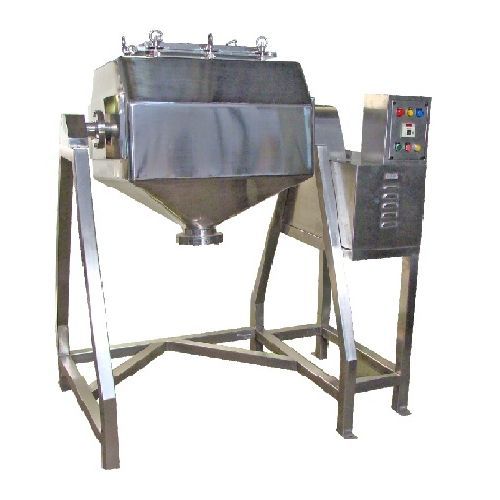

Octagonal Blender
The Octagonal Blender is an efficient and versatile blending machine for mixing and lubrication process. Octagonal Blender with Cylindrical Container of dry granules equally. It can be used for pharmaceutical, food, chemical and cosmetic products etc.
FEATURES
- Contact parts in stainless steel 304 or 316
- Octagonal shaped with rectangular center, conical discharge frustum and rectangular top frustum
- Baffles provided in the shell
- Manhole with gasket is provided to fix baffles and for ease of cleaning the shell
- Charging and discharging is through a butterfly valve. A conical adaptor can be provided for fixing charging drum after butterfly valve
- Unit can be provided with bin charging arrangement
- All moving parts are enclosed in guards
- A safety railing with a limit switch is provided for operator safety
- Manual Inching arrangement can be provided
- Flame - proof motors with flame - proof push button stations can be provided
Application
These benders are extensively used in
- Mixing dry powder for tablets and capsules formulations.
- Mixing dry granules sub lots to increase the batch size at bulk lubrication stage of tablet granules
| MODEL | GROSS VOLUME litres | WORKING VOLUME litres | MOTOR hp |
OUTPUT SPEED rpm | DISCHARGE VALVE inches |
OVERALL DIMENSIONS mm
|
|||||
| OB 50 | 125 | 100 | 0.5 | 8 | 6" | 1100 | 2000 | 2200 | |||
| OB 100 | 250 | 200 | 1 | 8 | 6" | 1200 | 2200 | 2500 | |||
| OB 150 | 375 | 300 | 1 | 5/10 | 6" | 1400 | 2200 | 2500 | |||
| OB 200 | 500 | 400 | 1.5 | 5/10 | 6" | 1400 | 2400 | 2600 | |||
| OB 250 | 625 | 500 | 2 | 5/10 | 8" | 1500 | 2600 | 2600 | |||
| OB 500 | 1250 | 1000 | 3 | 5/10 | 10" | 1800 | 2800 | 2900 | |||
| OB 1000 | 2500 | 2000 | 5 | 5/10 | 12" | 2000 | 3000 | 3200 | |||
